- Size: 510*255*540
- Place of Origin: Shanxi, China (Mainland)

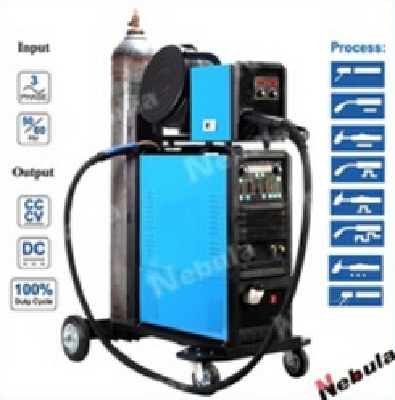

- Brand Name: NEBULA
- Model Number: Nebula-315/350/400/500/630F
- Weight: 80.000 kg
Technical Parameter
Model No. | 315 | 350 | 400 | 500 | 630 |
Current Range | 10-315A | 10-350A | 10-400A | 10-500A | 10-630A |
Rated input current | 18.5A | 21A | 26A | 36A | 50A |
Rated output voltage | 315A/32.6V | 350A/34V | 400A/36V | 500A/40V | 630A/44V |
Duty cycle | 100% | 60% | |||
Output No-load voltage | 70-90V | ||||
Thickness | 0mm ~ 25mm | ||||
Power factor COS | ≥ 0.85 | ||||
Efficiency | 90% | ||||
Insulation | H | ||||
Protection class | IP23S | ||||
Pre-gas time(Preg) | 0~15.0s | ||||
Post-gas time(Posg) | 0-15.0s | ||||
Soft start speed(Stfd) | Auto,0.5~22m/min | ||||
Inching speed(Infd) | 0.5~22m/min | ||||
Wire Feed Speed | 1m/min ~ 22m/min | ||||
Open circuit voltage | 65V-80V | ||||
Arc length | -50% ~ 50% | ||||
Arc Force | -50 ~ 50 | ||||
AL2 end voltage | -50~50 | ||||
Material type | 13 kinds | ||||
Wire Diameter | 0.8,1.0,1.2,1.6 | ||||
Operation mode | 2T,4T,S2T,S4T,Spot,JOB | ||||
Start current(HotI) | 0% ~ 200% | ||||
End Current (EndI) | 0% ~ 200% | ||||
Start time (Hott,s) | 0.1s ~ 15s | ||||
End Current Time (Endt) | 0.1s ~ 15s | ||||
Burning time (Burn) | 0%-20% | ||||
Spot time (Sptt) | 0.01s ~ 2s | ||||
Single Pulse Frequency | 10Hz-280Hz | ||||
Double pulse frequency(Freq) | 0.5Hz~5Hz | ||||
The second Arc length(AL2) | -50%~50% | ||||
Double pulse range(Fd2) | 0~2m/min | ||||
Slop time(Slop) | 0.1-15s | ||||
Warranty | One year guarantee | ||||
Certification | CE, CCC | ||||
Accessories | 1) Power source 1set 2) Wire feeder with 3m comprehensive 1 set 3) Binzel MIG gun with air cooled 3m 1pc 4) CO2 regulator or Argon flowmeter 1pc 5) Fast plug or OT connector 1pc 6) Contact Tips for SS or AL 5pcs 7) Wire liner for SS or AL 1pc 8) Roller or SS or AL 4pcs |
